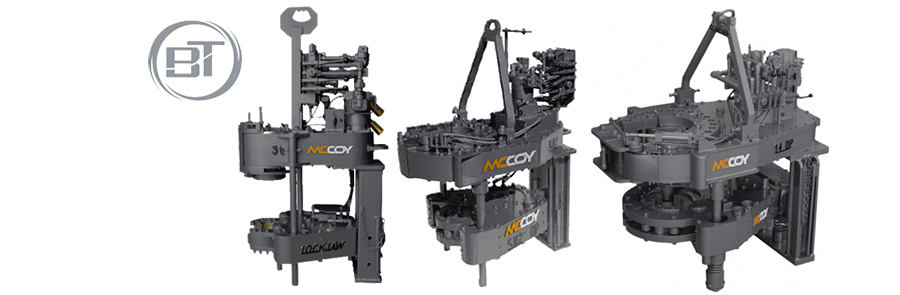

Hydraulic Power Tongs

• Wraparound Jaws and Dies.
• Exceptional gripping capabilities with reduced pipe deformation, stress, and marking.
• Non-marking aluminum and Gritface dies available.

• Size Range: 1.660” –16”
• Torque Range: 3,250 ft-lb – 89,000 ft-lbs

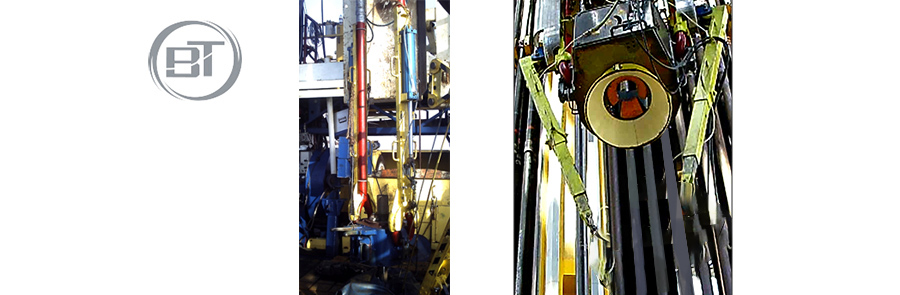

BESCO BATS ™ (Bail Assisted Thread Saver) and BATSSS ™ (Bail Assisted Thread Saver Stand System)
*For Use Under U.S. Patent No. 9,816,333 B2*

• Keeps the tubing in a neutral, vertical position.
• Eliminates any excess weight being applied to the connector during makeup or breakout.
• Allows most tubing sizes to be made up by hand prior to the installation of the tongs.
• Specifically designed for running and pulling CRA and premium tubulars.

• Bail Compatibility: 350, 500, 750 and 1000 ton
• Cylinder Bore Size and Capacity:
  • 4” / 1410 lbs. (Per Side)
  • 6” / 3390 lbs. (Per Side)
  • 8” / 5940 lbs. (Per Side)

• With the inclusion of the BATS ™ & arm attachments and HYD SJE, the thread saver becomes a stand system allowing you to pivot the arms up to 90 degrees allowing you to securely grab stands for makeup.

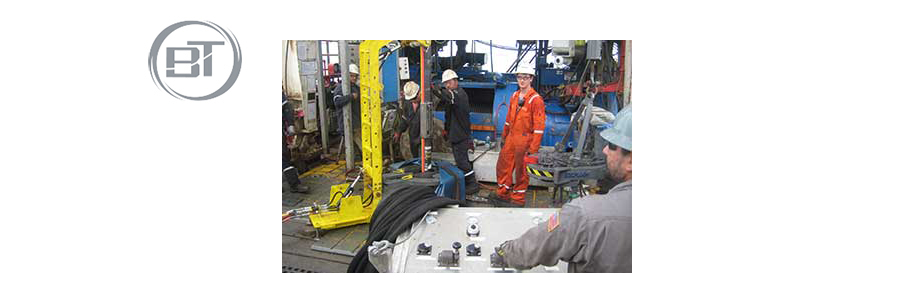

Besco Tubular Push Arm Patent pending

• Designed to run multiple control lines.
• Assists in guiding the control lines.

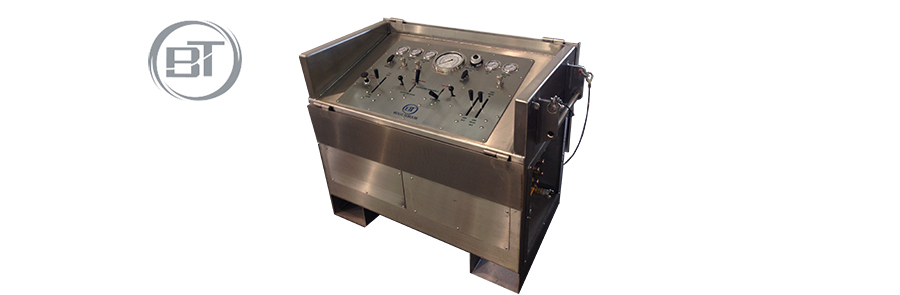

Besco Tubular Control Panel

• Built-in Interlock System protects the string from being dropped.
• Hydraulic and Pneumatic Operated.
• Operates the BATS System™, Casing/Tubing Elevators/Spiders, Hydraulic Single Joint Elevators, Flush Mount Spiders, HydraSlide™ and Push Arm.

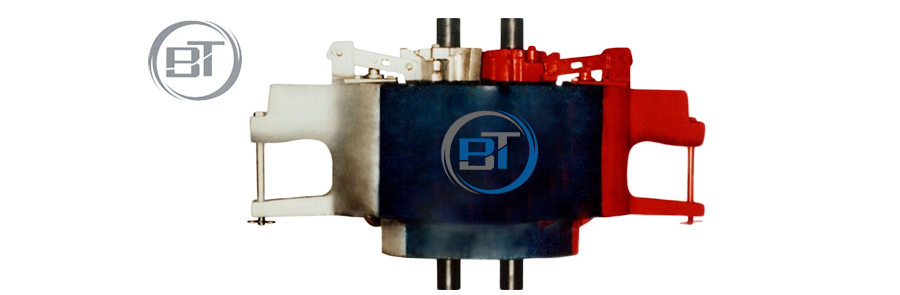

Pneumatically-Operated Elevators/Spiders

• Can be used as an Elevator or Spider.
• Swing-away door allowing for rapid installation/removal from pipe.
• Capable of lifting and suspending light tubing, heavy wall pipe and drill collars.

• Size Range: 2-3/8” – 14”
• Rating: 250 ton – 500 ton:
• Normal Operating Pressure: 85 psi
• Max Operating Pressure: 125 psi

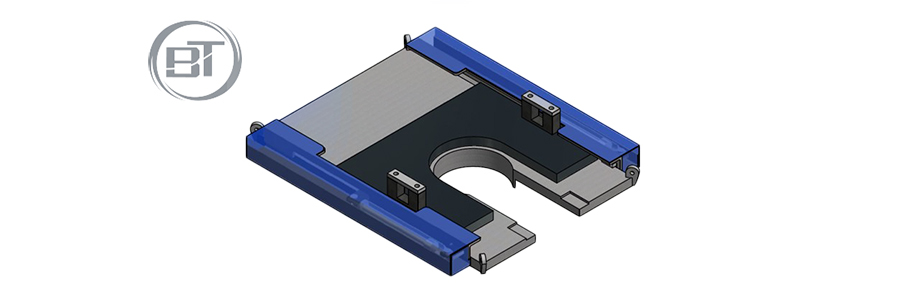

Besco Tubular HydraSlide™

• Eliminates down-time by automatically removing the Spider from the pipe thus allowing the Control Lines to pass
• Installation of HydraDapter™ allows for installation of 250, 350, and 500 ton Spiders.

• Rating: 250-500 ton

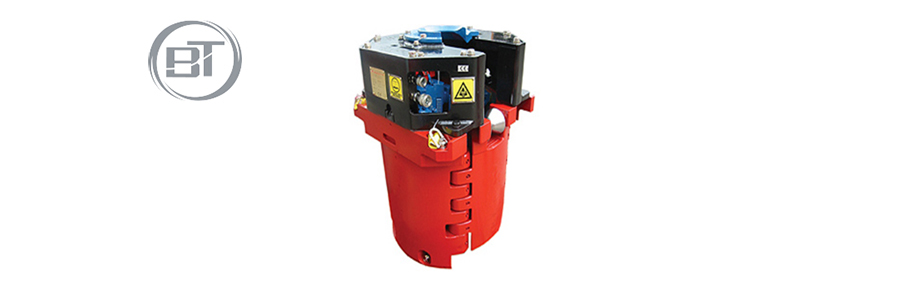

Flush Mount Spider (FMS)

• Can be used in combination with Rotary Support Table.
• Fits flush with API Rotary Table.

• Size Range: 2-3/8” – 7-5/8”
• Rating: 275 ton
• Normal Operating Pressure: 85 psi
• Max Operating Pressure: 125 psi

Verteco Flush Mount Spider (FMS)

• Convenient for running tapered strings due to 1” die gripping range
• Fits flush in any 27-1/2” rotary and fits any 37-1/2” rotary with Rib Extensions installed

• Size Range: 4-1/2” – 7-5/8”
• Rating: 500 ton
• Normal Operating Pressure: 85 psi
• Max Operating Pressure: 125 psi

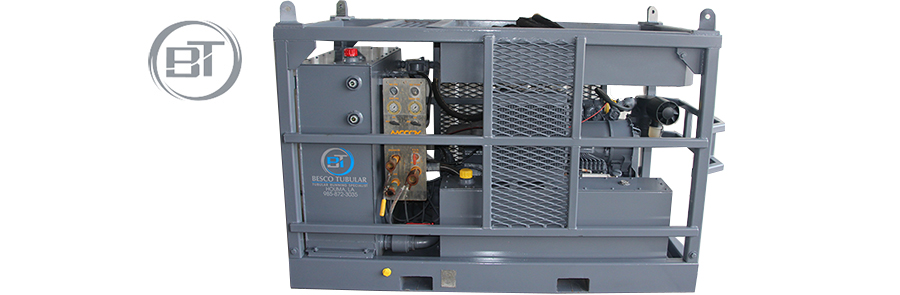

Hydraulic Power Unit

• Safety guards are installed on every unit
• 4 & 6 Cylinder capabilities

• 6 Cylinder Diesel Engine: 114 hp @ 2300 rpm
• Max Pressure/Flow: 58-60 gpm @ 1400 psi & 28-30 gmp @ 2900 psi

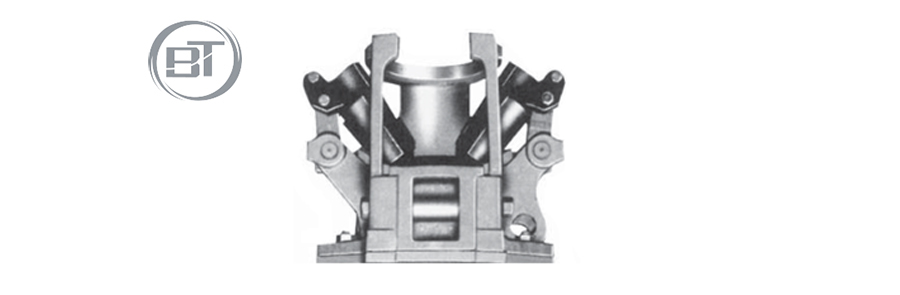

Cavins-Style Spider

• Pneumatically operated
• May be used on a rotary table with an adapter plate that fits into the square drive or pin drive master bushing

• Tubing Range: 1.315” – 5-1/2”
• Rating: 125 ton

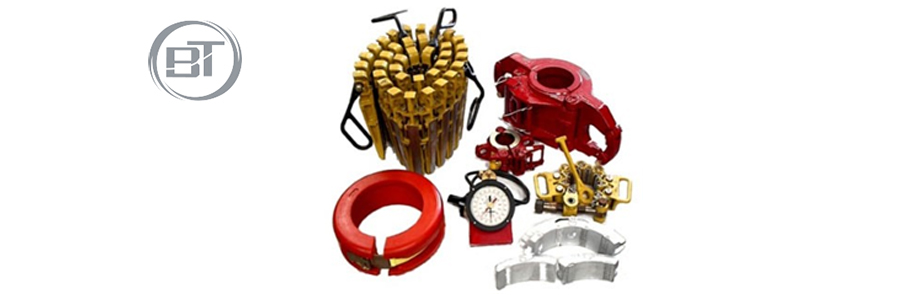

Manually operated Handling Equipment

• Safety Clamps
• Split Spiders
• Side Door Elevators
• Single Joint Elevators
• ... and much more!

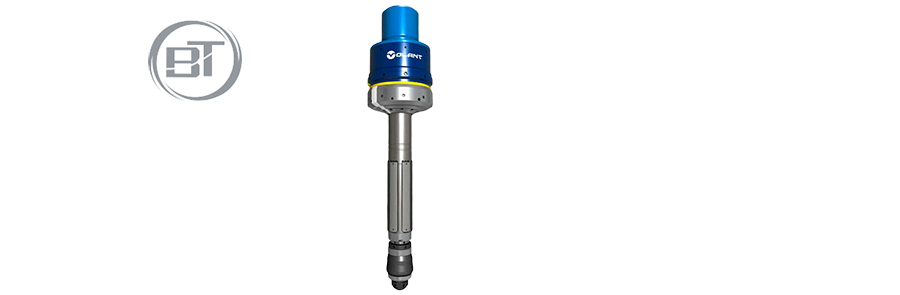

Casing Running Tool – Internal (CRTi)

• Capable of makeup, breakout, reciprocate, rotate, fill, circulate and cement casing/liner strings thus reducing non-productive time.

• Size Range: 5-1/2” – 13-3/8”
• Rating: 200 – 320 ton
• Torque: 25,000 – 50,000 ft-lbs
• Flow Rate: 449 (5.5 version) & 660 (7.0 version)

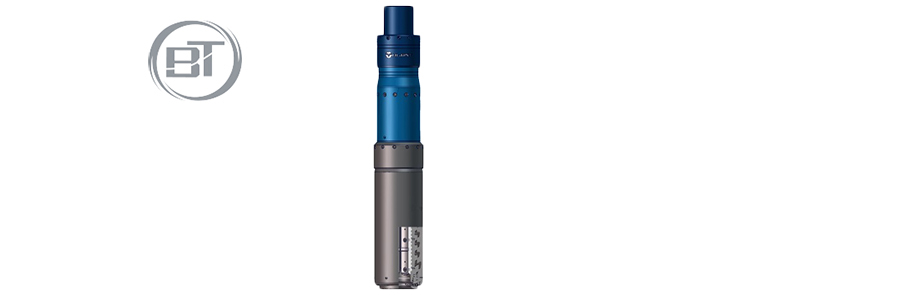

Casing Running Tool – External (CRTe)

• Capable of makeup, breakout, reciprocate, rotate, fill, circulate and cement casing/liner strings thus reducing non-productive time.
• Float and non-float available

• Size Range: 5-1/2” – 13-3/8”
• Rating: 500 ton
• Torque: 40,000 ft-lbs
